SYSMAC CJ1&CJ2M
เลื่อนดูรายละเอียดเพิ่มเติม

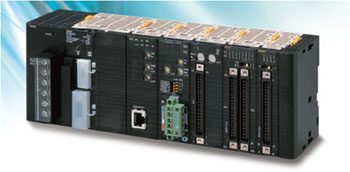

SYSMAC CJ1&CJ2M
รายละเอียดสินค้า
เข้าชม : 1163 | สั่งซื้อไปแล้ว : 0 | Wishlist Rate : 0 เพิ่มลง Wishlist


ป้ายกำกับ : SYSMACCJ1CJ2MA.K.MECHATRONICSakmAKM
SYSMAC CJ Programmable Controller

The CJ1M provides solution for applications with lower I/O counts and shorter programs compared to the more
powerful CJ1G/H CPUs. All CJ1 Series use the same instruction set and I/O modules, so existing programs and equipment can be easily reused in small and large-scale installations. A common memory area and powerful serial link among nine CJ1M CPUs can help integrate processes or coordinate activities.

CJ1
Key Features and Benefits:
Same instruction set as the more powerful CJ1G/H
All CJ1 I/O are completely compatible with CJ1M CPUs Smallest CJ1 in physical size; CPU12 and CPU13 are just 1 1/4" wide Up to 64 MB flash memory available for many timesaving programming uses Serial PLC Link allows simple communication among 9 CJ1 PLCs (1 master, 8 slaves) A pulse I/O instruction takes advantage of positioning capabilities in the CPU22 and the CPU23
Built-in peripheral and RS-232 ports Versatile combinations for specific tasks: Process controller with up to 16 process / temperature loops or analog I/O with serial output
Positioning controller with flexibility to provide discrete and analog outputs based on quadrature or other pulsed inputs. Use CX-Programmer software to program and monitor all of Omron's PLCs

  Compact Models Built-in EtherNet/IP With Built-in I/O Standard Models Loop-control CPU Units Advanced Models High-speed Models
CJ1M-CPU1[] CJ1M-CPU1[]-ETN CJ1M-CPU2[] CJ1G-CPU4[]H CJ1G-CPU4[]P(-GTC) CJ1H-CPU6[]H CJ1H-CPU6[]H-R
Basic instructions LD 100ns/OUT 350ns LD 100ns/OUT 350ns LD 100ns/OUT 350ns LD 40ns/OUT 40ns LD 40ns/OUT 40ns LD 20ns/OUT 20ns LD 16ns/OUT 16ns
Program capacity 20 to 5 Ksteps 20 to 5 Ksteps 20 to 5 Ksteps 60 to 10 Ksteps 60 to 10 Ksteps 250 to 60 Ksteps 250 to 30 Ksteps
Data memory capacity 32 Kwords 32 Kwords 32 Kwords 128 to 64 Kwords 128 to 64 Kwords 448 to 128 Kwords 448 to 64 Kwords
Number of I/O points 640 to 160 640 to 160 640 to 160 1,280 to 960 1,280 to 960 2,560 2,560
Built-in I/O None None 16 None None None None
Built-in EtherNet/IP None YES None None None None None

CJ2 NEW SERIES


The accumulated experience andadvancements in technology now result in CJ2M; fully compatible, yet fully new.

Five variations in program capacity from 5K steps to 60K steps; scale the CPU to your application needs.
Faster processors; LD instruction execution time is reduced to 40 ns, floating point trigonometrics in less than 1 μs.
Faster Function Block calls and execution, faster interrupt handling, less overhead time.
Added execution memory for Function Blocks allows structured, object-oriented programming even in entry-level CPUs
General-purpose Ethernet port supports EtherNet/IP tag-based data links, connection to Support Software, communications between PLCs,
FTP data transfers, and more (CJ2M-CPU3@).
Standard USB port on all models allows Support Software to connect directly through standard USB cable.
A Serial Option Module can be mounted to add RS-232C or RS-422A/485 communications ports (CJ2M-CPU3@).
Compatible with all existing CJ1 power supply-, I/O-, control- and communication units




TYPE Loop-control CPU Units Built-in EtherNet/IP
CJ2M-CPU11 CJ2M-CPU12 CJ2M-CPU13 CJ2M-CPU14 CJ2M-CPU15 CJ2M-CPU31 CJ2M-CPU32 CJ2M-CPU33 CJ2M-CPU34 CJ2M-CPU35
Basic instructions LD 40ns/OUT 60ns
Program capacity 5 Ksteps 10 Ksteps 20 Ksteps 30 Ksteps 60 Ksteps 5 Ksteps 10 Ksteps 20 Ksteps 30 Ksteps 60 Ksteps
Data memory capacity 64 Kwords 160 Kwords 64 Kwords 160 Kwords
Number of I/O points 2,560 points/40 Units (3 Expansion Racks max.) 2,560 points/40 Units (3 Expansion Racks max.)
Built-in I/O None

I/O Units
A wide variety of products, such as high-density mountable connectors and removable
terminal blocks, is available to meet your requirements.

TYPE INPUT UNIT
MODEL INPUT VOLTAGE AND CURRENT CURRENT CONSUMPTION
CJ1W-ID201 8 24 VDC, 10mA 0.09
CJ1W-ID211 16 24 VDC, 7mA 0.09
CJ1W-ID231 32 24 VDC, 4.1mA 0.09
CJ1W-ID232 32 24 VDC, 4.1mA 0.09
CJ1W-ID261 64 24 VDC, 4.1mA 0.09
CJ1W-ID201 64 24 VDC, 4.1mA 0.09
CJ1W-IA201 8 200 - 240 VAC 10mA 0.09
CJ1W-IA111 16 100 - 120 VAC 7mA 0.09

TYPE OUTPUT UNIT
MODEL OUTPUT VOLTAGE AND CURRENT CURRENT CONSUMPTION
CJ1W-OC201 8 250 VAC/24 VDC ,2A 0.09
CJ1W-OC211 16 251 VAC/24 VDC ,2A 0.11
CJ1W-OC201 8 12 - 24 VDC, 2mA SINKING 0.09
CJ1W-OC202 8 24 VDC ,2A ,SOURCING 0.11
C1W-OC203 8 12 - 24 VDC, 0.5mA SINKING 0.10
C1W-OC204 8 24 VDC ,2A ,SOURCING 0.10
C1W-OC211 16 12 - 24 VDC, 0.5mA SINKING 0.10
C1W-OC212 16 24 VDC ,0.5A  0.10
C1W-OC231 32 12 - 24 VDC, 0.5mA SINKING 0.14
C1W-OC232 32 24 VDC ,2A ,SOURCING 0.15
C1W-OC233 32 12 - 24 VDC, 0.5mA SINKING 0.17
C1W-OC261 64 13 - 24 VDC, 0.3mA SINKING 0.14
C1W-OC262 64 24 VDC ,2A ,SOURCING 0.17
C1W-OC263 64 12 - 24 VDC, 0.3mA SINKING 0.17

TYPE ANALOG UNIT
MODEL INPUT OUTPUT SIGNAL RANG CURRENT CONSUMPTION
CJ1W-AD081V1 8   1-5 V, 0-5V,0-10V,-10-10V,4-20mA 0.42
CJ1W-AD041V1 4   0.42
CJ1W-DA08V   8 0.14
CJ1W-DA08C   8 4-20mA 0.14
CJ1W-DA041   4 1-5 V, 0-5V,0-10V,-10-10V,4-20mA 0.12
CJ1W-DA021   2 0.12
CJ1W-MAD42 4 2 0.58

Special Applications Units


TYPE SPACIAL UNIT
MODEL DISCRIPTION
CJ1W-CT021 High-Speed Counter Module,Input frequencies to 500 kHz.,32-bit counting range.
CJ1W-NC113/
213/413/133/233/433
High-Speed, High-Precision Positioning
with 1, 2, or 4 Axes
CJ1W-V600C1* ID Sensor Modules
CJ1W-TC** Temperature Control Modules,  One Module Functions as
Four Temperature Controllers

Communications Units

Units are available for general-purpose Ethernet, as well as for data links between
PLCs, and the DeviceNet and CompoNet open networks.


TYPE CJ1W-SCU22 CJ1W-SCU32 CJ1W-EIP21 CJ1W-ETN21 CJ1W-FLN22 CJ1W-DRM21 CJ1W-CRM21 CJ1W-SRM21 CJ1W-V680C1*
