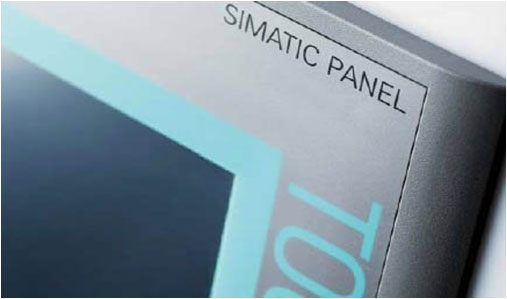

SIMATIC Multi Panels
especially performant devices for demanding HMI tasks and other automation applications. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SIMATIC Multi Panels -
More than just operator control and monitoring
As they are the highest performing HMI devices the Multi Panels are suited for most demanding HMI tasks.
In addition to visualization, the Multi Panels are also able to handle other automation tasks, e.g. as a platform for a soft plc. HMI-Functionality Comprehensive functionality, openess and connectivity as well as simple maintenance
Series 170
Entry level device to the class of Multi Panels: The MP 177 offers a 6" Touch display
Series 270
Medium level devices in the class of multifunctional platforms:
8" and 10" devices in Touch and Key versions.
Series 370
Highest performing Multi Panels with 12", 15" and 19" Touch devices and the MP 377 12" Key.
INOX Multi Panels
Multi Panels of the series 270 and 370 modified for use in food and beverage industry
WinAC MP 2007
Software PLC for medium sized machines and plants employing MP 277 or 377 devices
SIMATIC THIN CLIENT
cost effective operator devices for terminal- or web-client applications
SIMATIC HMI-Selection tool the convenient way to find the panel that meets your demands. The HMI selection tool helps you to save time and protects against misinvestments |
|
|
 |
|
|
|
TYPE |
|
|
|
|
|
|
Display Size |
3.8”
|
5.7”
|
5.7”
|
10.4”
|
15.0”
|
|
Resolution |
320 x 240
|
320 x 240
|
320 x 240
|
640 x 480
|
1024 x 768
|
|
Color Type |
monochrome
|
monochrome
|
256 colors
|
256 colors
|
256 colors
|
|
Touchscreen |
analog, resistive
|
analog, resistive
|
analog, resistive
|
analog, resistive
|
analog, resistive
|
|
Function keys |
4
|
6
|
6
|
8
|
|
|
Number of Ports |
1 - Ethernet
|
1 - Ethernet
|
1 - Ethernet
|
1 - Ethernet
|
1 - Ethernet
|
|
Tags |
128
|
128
|
128
|
256
|
256
|
|
Orientation |
landscape / portrait mode
|
landscape / portrait mode
|
landscape / portrait mode
|
landscape
|
landscape
|
|
|
|
|
Touch Panel TP170 Series |
 |
SIMATIC Panels – 170 series
The Touch Panels and Operator Panels of the 170 series have proven themselves for operator control and monitoring of small applications.
The performance capability of the devices is scalable. These higher-quality devices have a retentive message buffer, and the color devices have a PROFINET/Ethernet interface in addition to the PROFIBUS interface. |
|
|
|
|
TYPE |
170 series |
 |
 |
 |
 |
|
TP 177A |
TP 177B |
TP 177B |
OP 177B |
|
Display |
STN liquid crystal display
(LCD), 4 blue levels |
TFT widescreen
display (LCD),
256 colors |
STN liquid crystal display
(LCD), 4 blue levels or
256 colors |
STN liquid crystal display
(LCD), 4 blue levels or
256 colors |
|
Size (in inches) |
6" Touch |
4" Touch |
6" Touch |
6" Touch + Key |
|
Resolution (W x H in pixels) |
320 x 240 |
480 x 272 |
320 x 240 |
320 x 240 |
|
MTBF of backlight |
50,000 |
30,000 |
50,000 |
50,000 |
|
Front dimensions (in mm) |
212 x 156 |
140 x 116 |
212 x 156 |
243 x 212.5 |
|
Operator controls |
Touch screen |
Membrane keypad,
touch screen |
Touch screen |
Membrane keypad,
touch screen |
|
Memory |
512 KB |
2 MB |
2 MB |
2 MB |
|
Serial / MPI / PROFIBUS DP |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
Slot for CF / Multi Media /
Secure Digital Cards |
PN/DP version |
PN/DP version |
PN/DP version |
PN/DP version |
|
SIMATIC S7/SIMATIC WinAC |
|
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
|
Engineering software |
WinCC Comfort V11, WinCC flexible Compact, Standard, Advanced or higher |
|
|
|
|
Touch Panel TP270 Series |
 |
SIMATIC Panels – 270 series
Based on the Windows CE operating system for more flexibility and openness the SIMATIC Panels of the 270 series offer innovative operator control and monitoring combined with the tried and tested advantages of the Operator Panels and Touch Panels: Ruggedness, stability and simple handling. |
|
|
|
|
TYPE |
270 series
|
|
|
|
|
|
|
|
|
TP 277
|
OP 277
|
MP 277
|
|
Display |
TFT liquid crystal display
(LCD), 256 colors |
TFT liquid crystal display
(LCD), 256 colors |
TFT liquid crystal
display (LCD),
64K colors |
TFT liquid crystal
display (LCD),
64K colors |
TFT liquid crystal
display (LCD),
64K colors |
TFT liquid crystal
display (LCD),
64K colors |
|
Size (in inches) |
6" Touch |
6" Key |
8" Touch |
10" Touch |
8" Key |
10" Key |
|
Resolution (W x H in pixels) |
320 x 240 |
320 x 240 |
640 x 480 |
640 x 480 |
640 x 480 |
640 x 480 |
|
MTBF of backlight |
50,000 |
50,000 |
50,000 |
50,000 |
50,000 |
50,000 |
|
Front dimensions (in mm) |
212 x 156 |
308 x 204 |
250 x 190 |
335 x 275 |
362 x 231 |
483 x 310 |
|
Operator controls |
Touch screen |
Membrane keypad |
Touch screen |
Touch screen |
Touch screen |
Membrane keypad |
|
Memory |
4 MB |
4 MB |
6 MB |
6 MB |
6 MB |
6 MB |
|
Serial / MPI / PROFIBUS DP |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
Slot for CF / Multi Media /
Secure Digital Cards |
PN/DP version |
PN/DP version |
PN/DP version |
PN/DP version |
PN/DP version |
PN/DP version |
|
SIMATIC S7/SIMATIC WinAC |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
|
Engineering software |
WinCC Comfort V11, WinCC flexible Standard, Advanced or higher |
|
|
|
|
Touch Panel TP370 Series |
|
|
 |
SIMATIC Multi Panels 370 series
Thanks to the Windows CE operating system, the multifunctional platforms offer PC-like openness and flexibility combined with rugged, compact, and cost-optimized hardware. Without hard disk and fan, the SIMATIC Multi Panels can be used for visualization even where high vibration loads or dust-laden atmospheres restrict the use of a PC. |
|
|
|
|
TYPE |
370 series |
|
|
|
|
|
|
MP 377
|
|
Display |
TFT liquid crystal
display (LCD),
64K colors |
TFT liquid crystal
display (LCD),
64K colors |
TFT liquid crystal display
(LCD), 64K colors |
TFT liquid crystal display
(LCD), 64K colors |
|
Size (in inches) |
12" Touch |
12" Key |
15" Touch |
19" Touch |
|
Resolution (W x H in pixels) |
800 x 600 |
800 x 600 |
1024 x 768 |
1280 x 1024 |
|
MTBF of backlight |
50,000 |
50,000 |
50,000 |
50,000 |
|
Front dimensions (in mm) |
335 x 275 |
483 x 310 |
400 x 310 |
483 x 400 |
|
Operator controls |
Touch screen |
Membrane keypad |
Touch screen |
Touch screen |
|
Memory |
12 MB |
12 MB |
12 MB |
12 MB |
|
Serial / MPI / PROFIBUS DP |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
RS232 with adapter |
Slot for CF / Multi Media /
Secure Digital Cards |
PN/DP version |
PN/DP version |
PN/DP version |
PN/DP version |
|
SIMATIC S7/SIMATIC WinAC |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
with SIMATIC S5/S7 |
|
Engineering software |
WinCC Comfort V11, WinCC flexible Standard, Advanced or higher |
|
|
|
|
|
|
|
|
ORDERING |
|
|
6AV6 640-0BA11-0AX0 |
OP 73 micro s7-200 |
|
6AV6 640-0CA11-0AX1 |
Touch with s7-200 series |
|
6AV6 640-0DA11-0AX0 |
K-TP 178 micro s7-200 |
|
6AV6 641-0AA11-0AX0 |
OP 73 3-inch monochrome |
|
6AV6 641-0BA11-0AX1 |
OP 77A Monochrome 4.5 inches |
|
6AV6 641-0CA01-0AX1 |
OP 77B Monochrome 4.5 inches |
|
6AV6 642-0AA11-0AX1 |
TP 177A Monochrome 5.7 inches |
|
6AV6 642-0BC01-1AX1 |
TP 177B DP Monochrome 5.7 inches |
|
6AV6 642-0BA01-1AX1 |
TP 177B PN/DP Color 5.7 inches |
|
6AV6 642-0DC01-1AX1 |
OP 177B DP Monochrome 5.7 inches |
|
6AV6 642-0DA01-1AX1 |
OP 177B PN/DP Color 5.7 inches |
|
6AV6 643-0BA01-1AX0 |
OP 277-6 Operator panel, 5.7-inch color |
|
6AV6 643-0AA01-1AX0 |
TP277-6 Touch-panel,5.7-inch color |
|
6AV6 643-0CB01-1AX1 |
MP277-8 Touch-panel, 8-inch 64K color |
|
6AV6 643-0DB01-1AX1 |
MP277-8 Push-button panel,English 8-inch 64K color |
|
6AV6 643-0CD01-1AX1 |
MP277-10 Touch-panel,English 8-inch 64K color |
|
6AV6 643-0DD01-1AX1 |
MP277-10 Push-button panel,Chinese 10-inch 64K color |
|
6AV6 644-0AA01-2AX0 |
MP377-12 Touch-panel, 12-inch 64K color |
|
6AV6 644-0AB01-2AX0 |
MP377-15 Touch-panel, 15-inch 64K color |
|
6AV6 644-0AC01-2AX0 |
MP377-19 Touch-panel,19-inch 64K color |
|
6AV6 644-0BA01-2AX1 |
MP377-12 Push-button panel, 12-inch 64K color |
|
6AV6 671-1CB00-0AX2 |
MMC 128 MB OP77B, OP/TP 177B, MOBILE PANEL 177 |
|
6ES7 648-0DC20-0AA0 |
USB stick 512M |
|
6ES7 648-0DC30-0AA0 |
USB stick 1G |
|
6ES7 648-0DC40-0AA0 |
USB stick 2G |
|
6AV6 647-0AE11-3AX0 |
KTP1000 basic color DP 10.4 " |
|
6AV6 647-0AF11-3AX0 |
KTP1000 basic color PN 10,4 " |
|
6AV6 647-0AG11-3AX0 |
TP1500 basic color PN 15.0 |
|
6AV6 545-0BA15-2AX0 |
TP170A Touch-panel, |
|
6AV6 545-0BB15-2AX0 |
TP170B Touch-panel,,5.7 |
|
6AV6 545-0BC15-2AX0 |
TP170B Touch-panel,5.7 |
|
6AV6 542-0BB15-2AX0 |
OP170B operator panel, 5.7-inch monochrome |
|
6AV6 545-0CA10-0AX0 |
TP270-6 Touch-panel, 5.7-inch color |
|
6AV6 545-0CC10-0AX0 |
TP270-10 Touch-panel,, 10.4-inch color |
|
6AV6 542-0CA10-0AX0 |
OP270-6 operator panel, 5.7-inch color |
|
6AV6 542-0CC10-0AX0 |
OP270-10 operator panel, 10.4-inch color |
|
6AV6 542-0AG10-0AX0 |
| |
