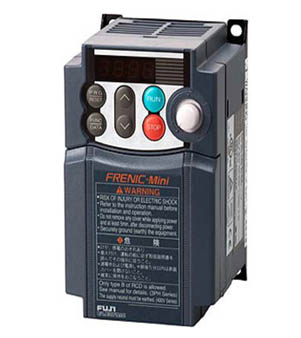

FUJI FRENIC-Mini Series Smart Inverters

Optimum performance for traversing conveyors  The highly used functions for fans and pumps  The ideal functions to serve a multiplicity of needs for small-capacity inverters  Compact  Simple operation and wiring  Interface for peripheral devices and comprehensive protective functions  Easy Maintenance  Flexible through optionals  Wide variations  Global products

High starting torque, at 150% or more

Equipped with Fuji,s original simplified torque-vector control system
and the automatic torque boost function, the inverter provides consistent powerful operation
(when automatic torque boost is ON, slip compensation control is ON, and when running at 5Hz or more).

*The above graph shows an example of torque characteristics obtained when FRENIC-Mini is
combined one-to-one with Fuji,s standard 3-phase motor (8-type series: 4 poles).

Braking resistor connectable to the inverter

Owing to a built-in braking transistor (0.4kW or over), an optional braking resistor can be connected
to increase the regenerative braking capacity for conveyance and transportation machinery that
require large braking power. For inverters of 1.5kW or larger, it is possible to select the model that incorporates a braking resistor

Reduced motor instability at low speed
Fuji,s unique control method improves voltage control performance and
reduces motor instability at low speed to about a half or less (at 1Hz)
compared with that of conventional inverters.

Automatic energy-saving provided as a standard function

By controlling the motor loss to a minimum, FRENIC-Mini further saves electric power when applied to fans or pumps.  *Energy saving rate varies with the motor characteristics PID control function Permits motor operation while controlling temperature, pressure, or flow rate without using an external device such as temperature controller. Cooling fan ON/OFF control function The inverter,s cooling fan can be turned off while the fan or pump is stopped for noise reduction and energy savings.

Asian Models

Without EMC filter type

EMC filter Built-in type (On order)

Braking resistor filter Built-in type [Without EMC filter](On order)

European Models

EMC filter Built-in type

Without EMC filter type (On order)

Braking resistor filter Built-in type [Without EMC filter](On order)

-Type1(NEMA1)conformed model is available by attaching optional parts.
-The three-phase 200V series inverters of which type code ends with "J" come with the instruction manual written in Japanese.

Basic wiring diagram

Part number
FRN0.1C1S-2A
FRN0.2C1S-2A
FRN0.4C1S-2A
FRN0.75C1S-2A
FRN1.5C1S-2A
FRN2.2C1S-2A
FRN3.7C1S-2A
FRN0.4C1S-4A
FRN0.75C1S-4A
FRN1.5C1S-4A
FRN2.2C1S-4A
FRN3.7C1S-4A
FRN0.1C1S-7A
FRN0.2C1S-7A
FRN0.4C1E-7A
FRN0.4C1S-7A
FRN0.75C1E-7A
FRN0.75C1S-7A
FRN1.5C1S-7A
FRN2.2C1S-7A
